| Model | XJ101 |
|---|---|
| Pressure Bearing | 3/8kg |
| Flow Rate | 10-15tons/hour |
| Material | #201/304 Stainless Steel |
| Wall Thickness | 1.5mm |
| Inlet/Outlet Diameter | 5/4″(Customizable) |
| Barrel Diameter | 159/200/219mm |
| Lock Type | Clamp |
Filter Series

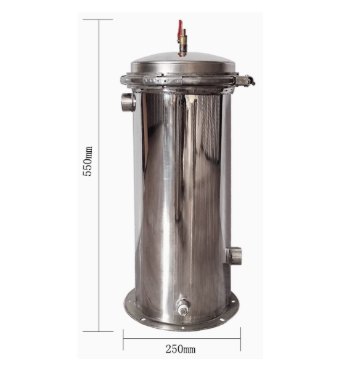

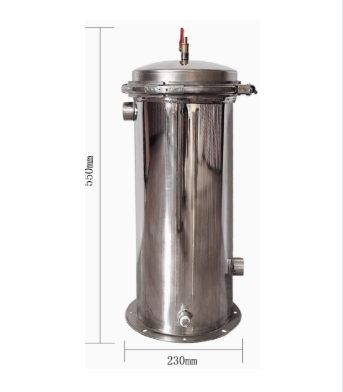

XJ101 Stainless Steel Filter(Atmospheric Pressure Model)
- Simple & Convenient Operation: Compact footprint, ready to use out of the box.
-
High Filtration Precision: Effectively removes microparticles and suspended solids.
-
Large Effective Filtration Area: A single filter bag offers 5-10 times the capacity of comparable filter cartridges, significantly reducing costs.
-
High Flow Rate per Unit Area & Efficiency: Delivers high processing flow rates per unit area with high resistance and excellent filtration efficiency.
-
Lower Investment & Lifetime Costs: Outperforms cartridge filters and raw water pre-treatment systems in cost-effectiveness (lower initial investment and filter costs/longer service life) while achieving equivalent filtration results.
