xj121 large scale stainless steel multi bag filter(four bag heightened lifting ring type)

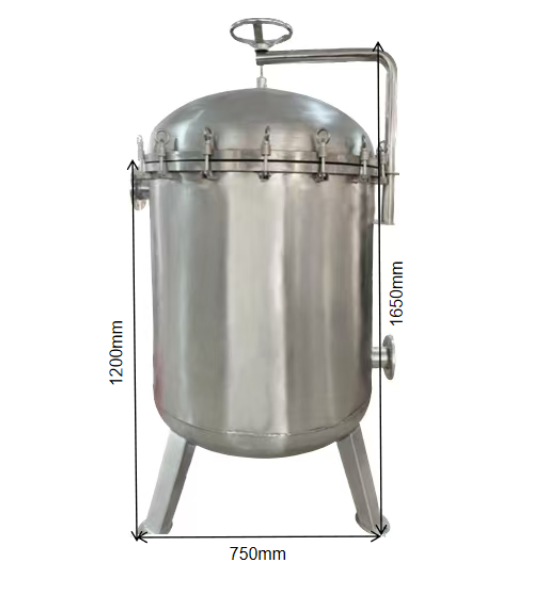

XJ122 Large-Scale Stainless Steel Multi-Bag Filter(Eight-Bag Lifting Ring Type)

Features:
  1. The filtration area handles a relatively large flow rate with low filtration resistance, further improving filtration performance.
  2. With a large filtration area, large multi-bag filters can handle large liquid flows simultaneously, ensuring efficient production.
  3. Large multi-bag filters can filter multiple impurities of different particle sizes at the same time, and their filtration efficiency is generally high.
Model XJ122
Pressure Bearing 8kg
Flow Rate 120-150tons/hour
Material 201/304
Wall Thickness 3mm
Inlet/Outlet Diameter 5/4″(Customizable)
Barrel Diameter 750mm
Lock Type Lifting Ring
