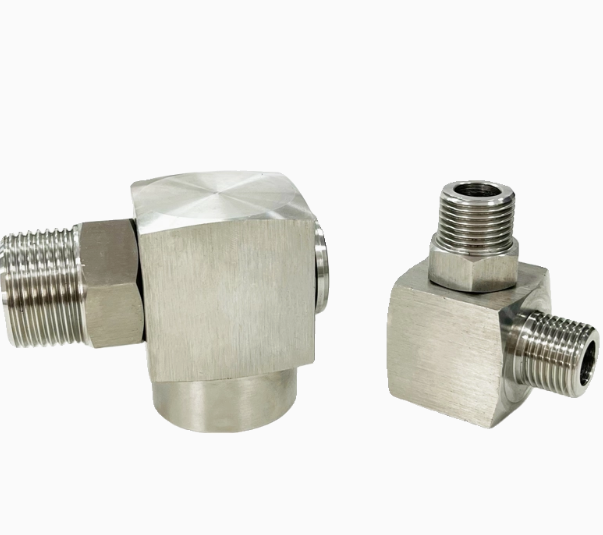

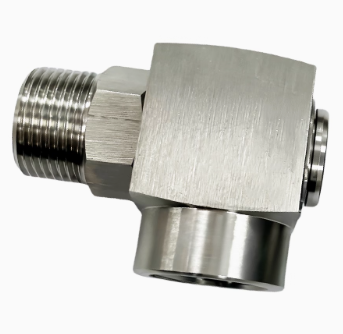

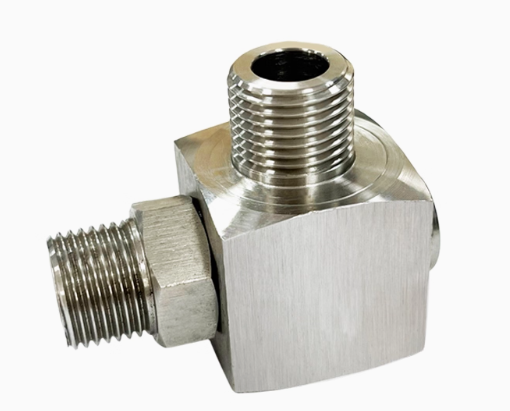

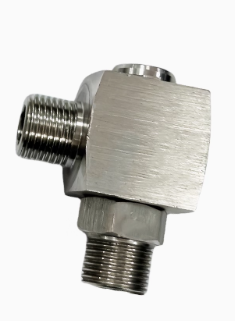

XJ304 Stainless Steel Hydraulic Rotary Joint

1、Excellent Material Quality
Made of stainless steel, it features outstanding corrosion resistance, making it suitable for various complex working environments. This extends the service life of the joint, while reducing equipment failures and maintenance costs caused by corrosion.
2、Multiple Sizes and Specifications
It meets the connection needs of hydraulic systems with different pipe diameters, offering strong adaptability.
3、Rotational Capability
The joint allows free rotation within a certain angular range, ensuring smooth circulation of hydraulic media during rotation and preventing pipe twisting, tangling, or leakage caused by rotation.
4、High-Precision Machining
The threaded part undergoes high-precision machining, ensuring tight and reliable connections, reducing the risk of leakage, and facilitating easy installation and disassembly.
MODEL 1/8″ 1/4″ 3/8″ 1/2″ 3/4″ 1″
screw outer diameter 9.5mm 12.5mm 16mm 20mm 25.5mm 32mm
screw inter diameter 8.5mm 11.5mm 15mm 19mm 24mm 30mm
